Foam Milling CNC Router

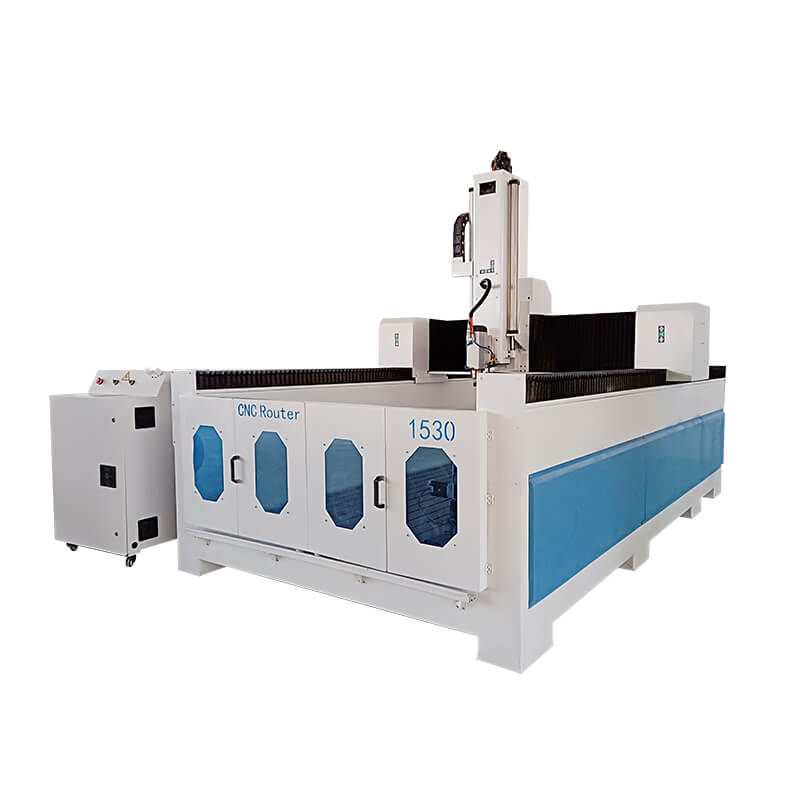

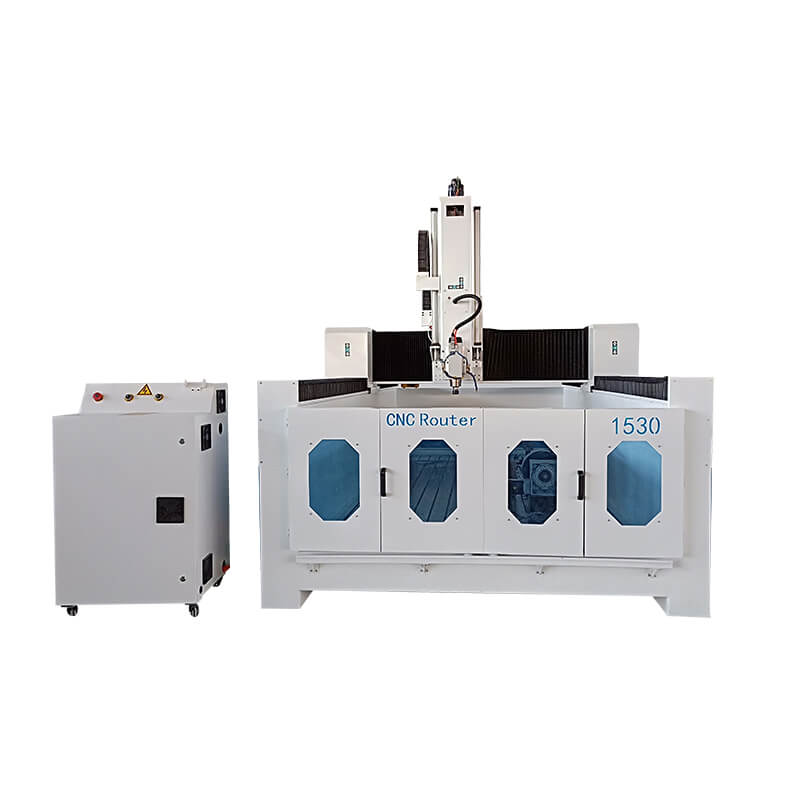

EPS CNC router 4 axis machining centre, the spindle can swing 180 °, optional 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale 3D engraving, and curved surface processing is available, also known as foam CNC router machine, mold CNC router machine, EPS CNC carving machine.
The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations.
Foam CNC Engraving Carving Milling Machine Video
Send Inquriry Now
Advanced Performance
1.Using straight line in knife knife library design, in the process of machining can be automatically replaced, greatly improving the work efficiency.
2.Adopts 9.0 kw air-cooled automatic tool change spindle he, long life, low noise, reliable in quality.
3.IGOLDENCNC independent electric control cabinet, humanized design, Taiwan Syntec system, the operation is simple and convenient.
4.Adopt Taiwan guide rail and the new moon of silver rack, high positioning accuracy, slide smooth, reliable quality, long service life.
5.The worktable rotating device specially designed for sinking worktable has a thimble structure at both ends.
Product Parameter
| Model | iGW-MC-1530 |
| Working area | 1500*3000*800mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table structure | Aluminum profile |
| Spindle power | HQD 9KW |
| Spindle speed | 18000rpm/min |
| Travelling speed | 45m/min |
| Working speed | 30m/min |
| Working Delicacy | 0.02mm |
| Repositioning Accuracy | 0.03mm |
| Driver motor | Servo motor |
| Control system | DSP/Nc studio /Syntec |
| Voltage | 3 Phase/380V/50HZ |
Samples
Hot applications include:
Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.
>Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;
>Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.
