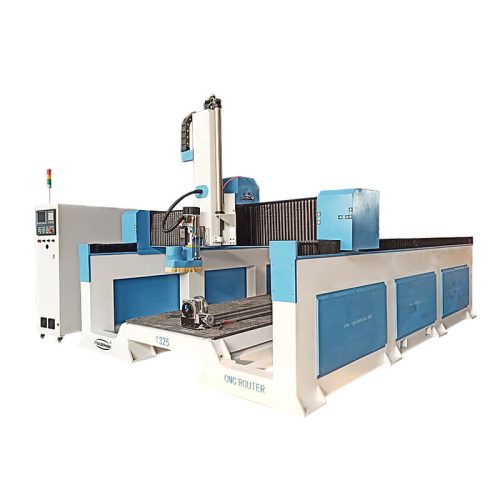

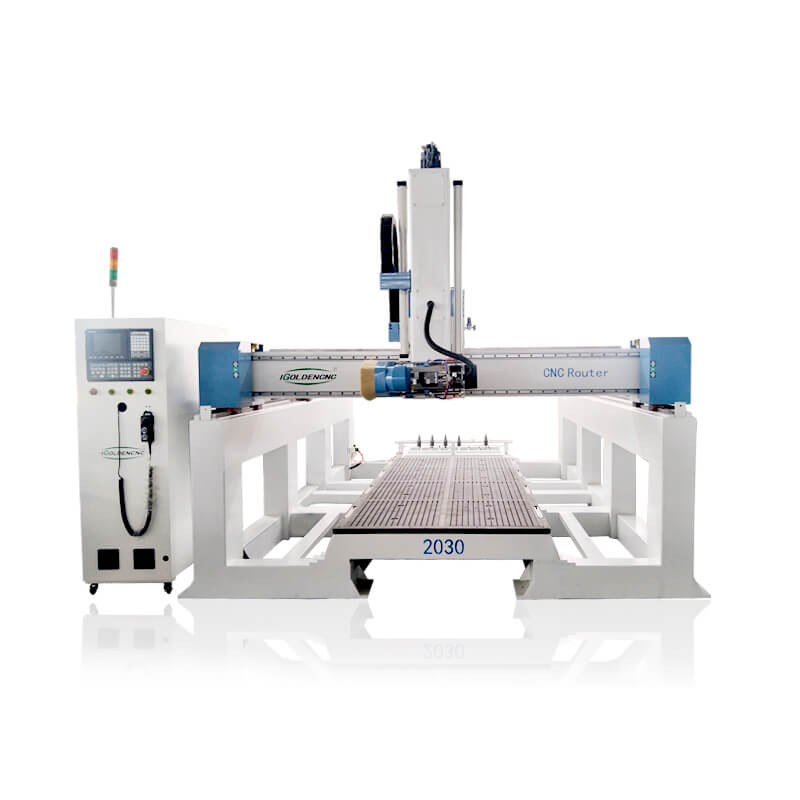

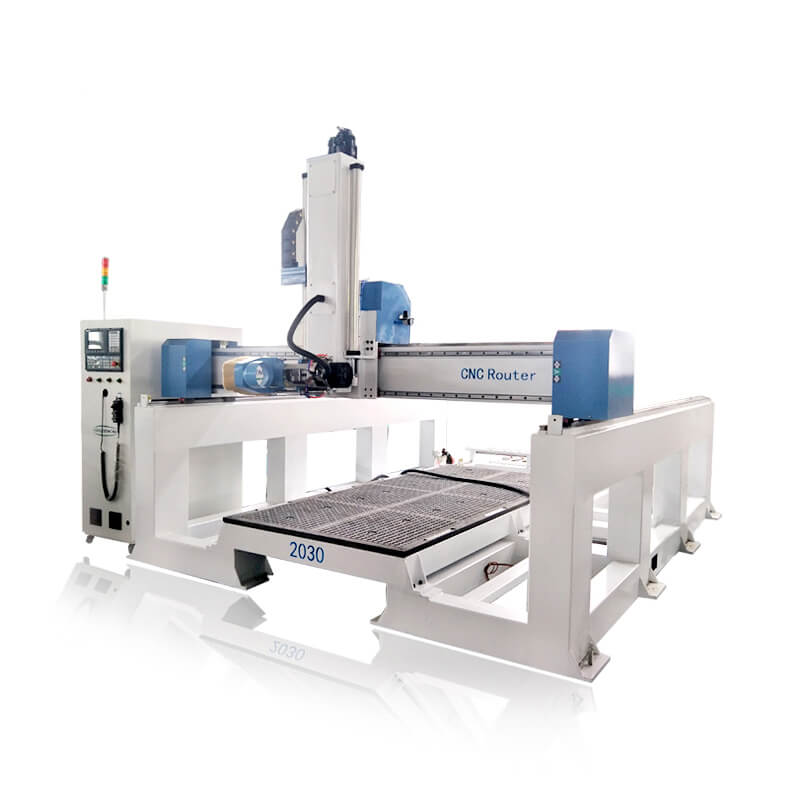

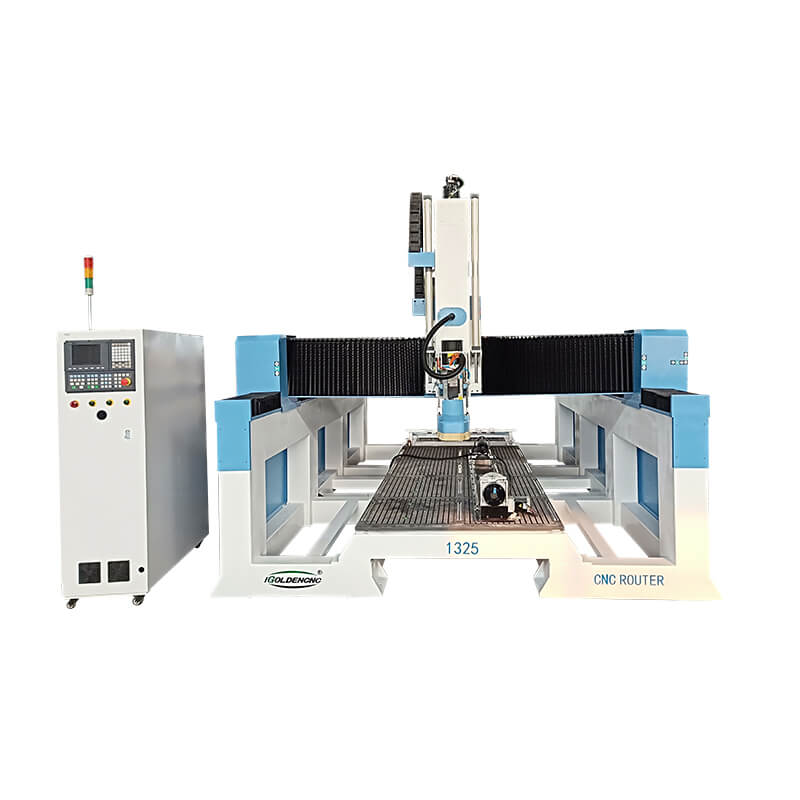

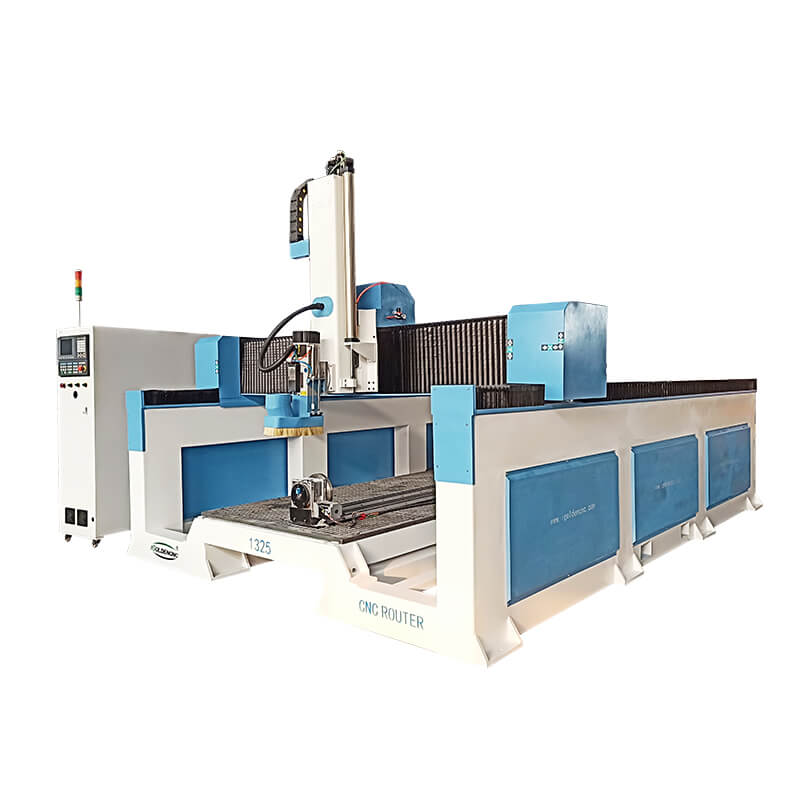

4 Axis EPS Styrofoam CNC Router with Split Structure
EPS Mould Making Machine is the heavy-duty CNC Router for all kinds of mold making. Such as wooden wood, Foam mold, aluminum mold, and other non-metal molds. This CNC Router machine is designed with a special machine structure and installed with a high configuration in order to get high speed, high precision, and good performance. The important machining parts of the EPS Cutting Machine tool are subjected to annealing and other heat treatment processes. After the machining is completed, the three-coordinate measurement is performed to ensure the accuracy of the parts.
This machine has two A working station, then when you use this machine to work, when this machine is working in the first station, the worker can make preparations in advance in another station. This can greatly improve the working efficiency of the machine.
Advanced Performance
1.Using straight line in knife knife library design, in the process of machining can be automatically replaced, greatly improving the work efficiency.
2.Adopts 9.0 kw air-cooled automatic tool change spindle he, long life, low noise, reliable in quality.
3.IGOLDENCNC independent electric control cabinet, humanized design, Taiwan Syntec system, the operation is simple and convenient.
4.Adopt Taiwan guide rail and the new moon of silver rack, high positioning accuracy, slide smooth, reliable quality, long service life.
5.The worktable rotating device specially designed for sinking worktable has a thimble structure at both ends.
Product Parameter
| X, Y Axis Working Area | 2000*3000/2000*4000mm |
| Z Axis Working Height | 400-1200 optionedmm |
| Positioning Accuracy | 0.03mm |
| Re-positioning Accuracy | 0.02mm |
| Body Structure | Welding Body, Split Structure |
| X, Y Axis Structure | Linear Guide Rail, Gear Rack |
| Z Axis Structure | Linear Guide Rail, Screw |
| Max. Running Speed | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle | 9.0kw Air-cooling ATC Spindle（Optioned） |
| Spindle RPM | 18000rpm/min |
| Working Voltage | AC 220V/ 380V±10%,50-60Hz |
| Machine Weight | 2800/3000 kg |
Samples
CNC Router 4 Axis Machining Centre
>Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.
>Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;
>Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.
