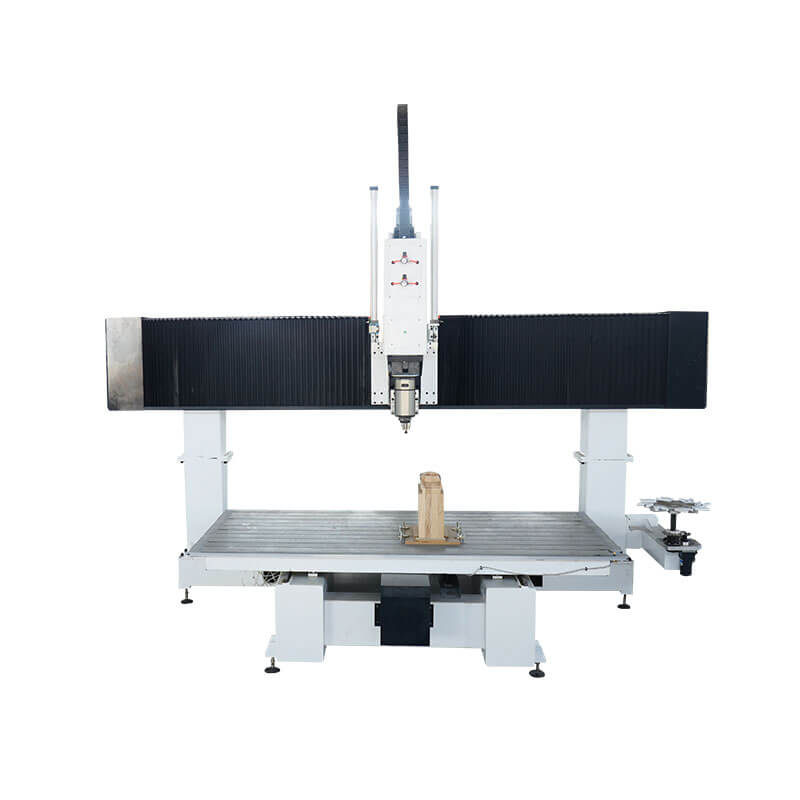

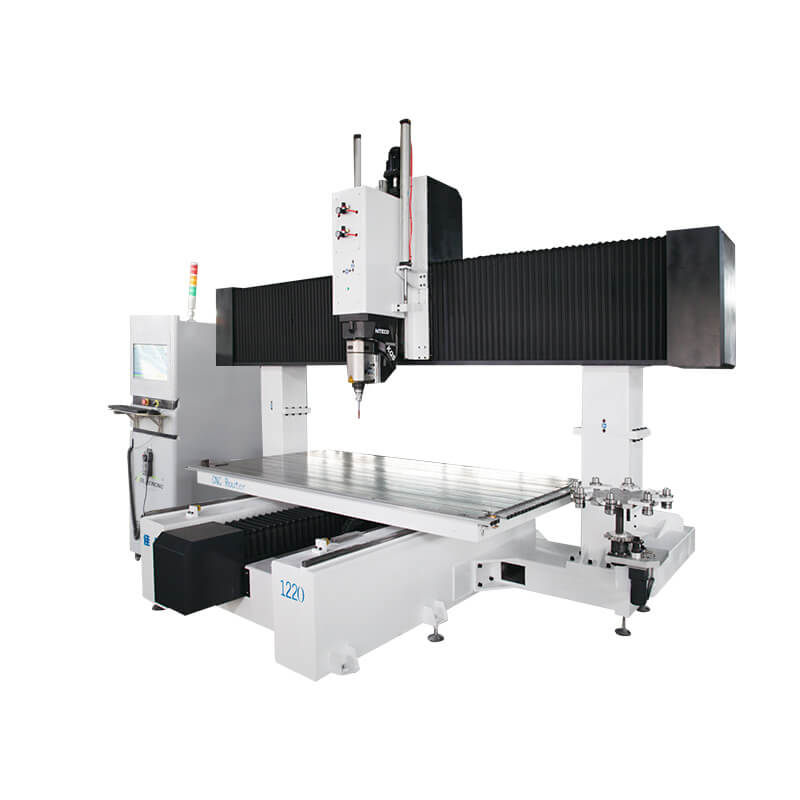

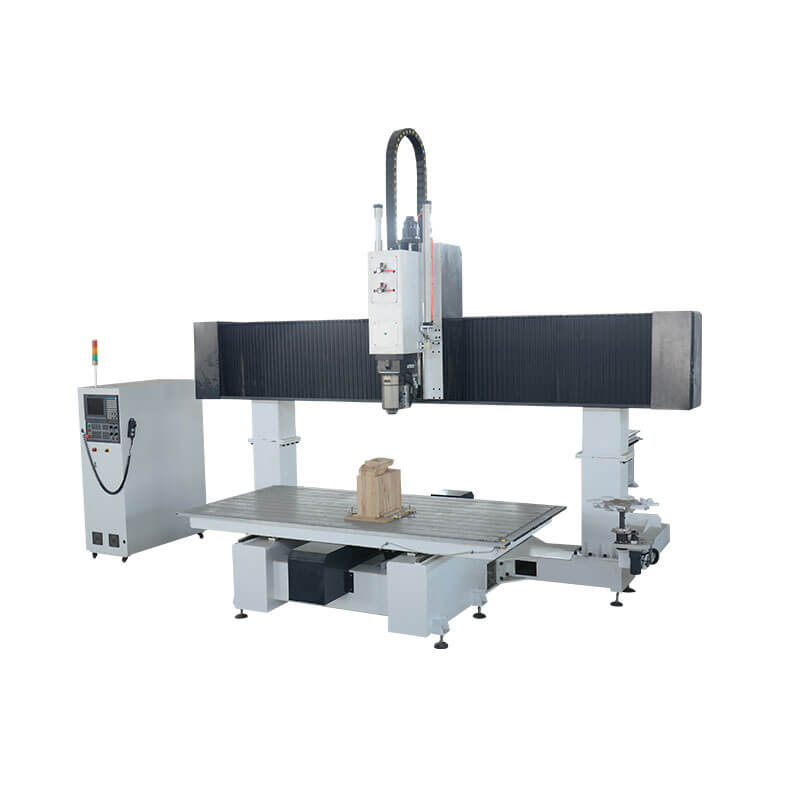

3D CNC Router Machine 5 Axis Carving Styrofoam Foam EPS Sculpture
A 5-axis CNC router is a cutting machine that is used to shape and carve various materials such as wood, plastic, metal, and composites. “5-axis” refers to the machine’s ability to move the cutting tool in five different directions, allowing it to create complex 3D shapes and contours.
Adcanced 5 axis cnc router machine, also known as 5 axis cnc machining center, 5 axis cnc milling machine, is good at space curved surface processing, special-shaped processing, hollow processing, punching, oblique drilling, chamfering, etc. It is widely used in aerospace, military scientific research, precision machinery, high-precision medical equipment, normal manufacturing, etc.
Advanced Performance
Thickening Steel Gantry：The damage to the motion conduction device is small, and the resistance to the drive motor is small, so that the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use costs are reduced.
Disc Tool Bank：Tool magazine with 6-10 discs on the side.Load 6-10 tools with different functions at one time and change the tool in 2 seconds.Save time for manual tool change and improve work efficiency.
Taiwan SYNTEC System：The System with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
14KW SCM five-axis spindle + swing head
Product Parameter
| X, Y Axis Working Area | 1200*2000mm |
| Z Axis Working Height | 600-1200 optionedmm |
| Positioning Accuracy | 0.03mm |
| Re-positioning Accuracy | 0.02mm |
| Body Structure | Welding Body |
| X, Y Axis Structure | Linear Guide Rail, Gear Rack |
| Z Axis Structure | Linear Guide Rail, Screw |
| Max. Running Speed | 60000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle | 14kw ATC Spindle（Optioned） |
| Spindle RPM | 24000rpm/min |
| Working Voltage | AC 220V/ 380V±10%,50-60Hz |
| Machine Weight | 2300kg |
We offer customized services according to your requests such as the working area and specifications.

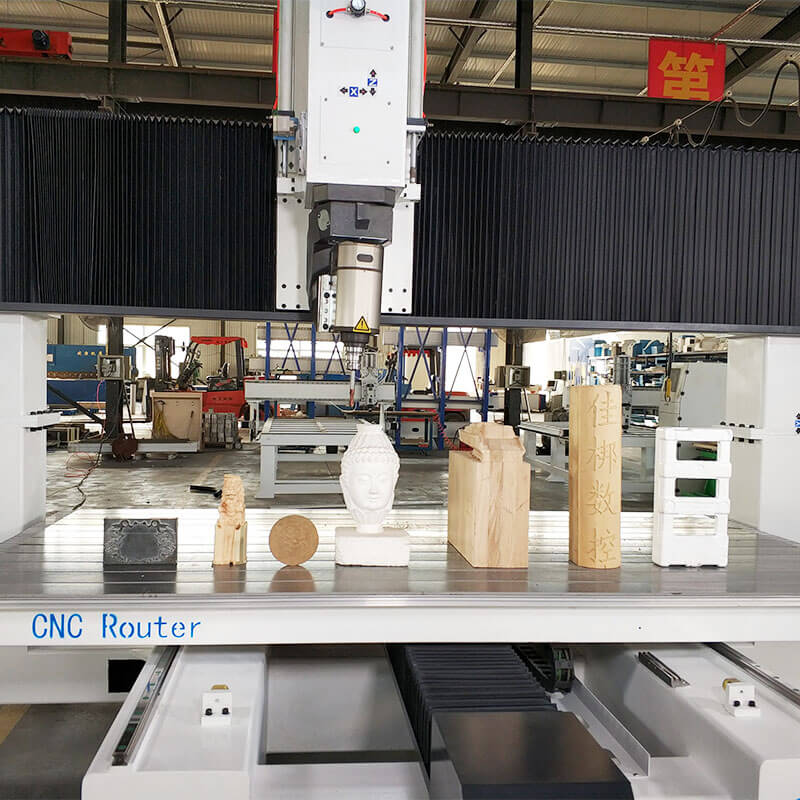

Samples
Application of 5 Axis CNC Router Machine
Composite materials industry: Trimming and punching of various composite materials such as plastic parts, glass fiber reinforced plastic parts, rubber and plastic products;
Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;
Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;
Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.
