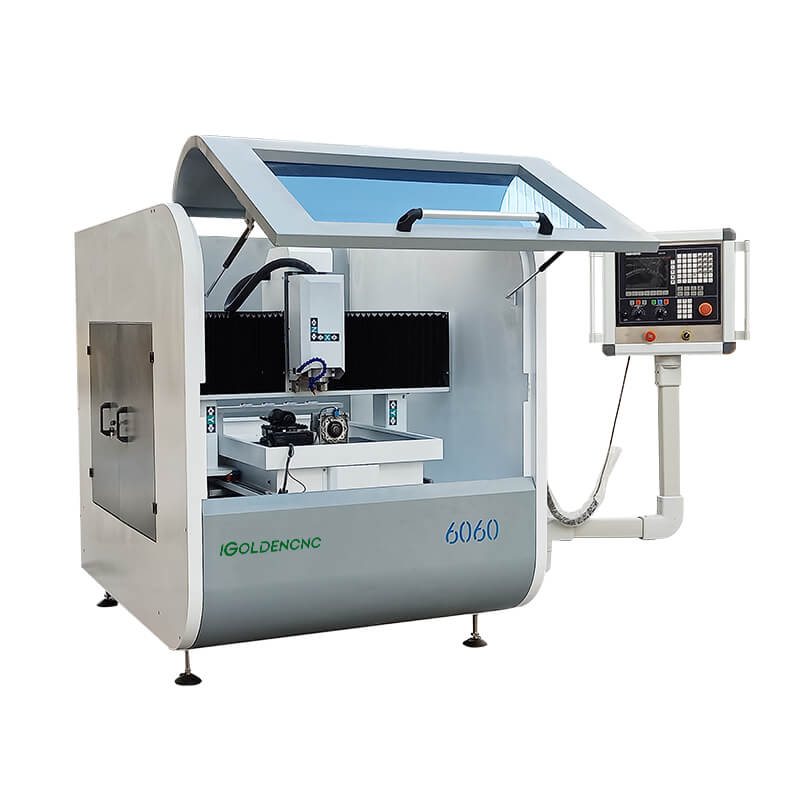

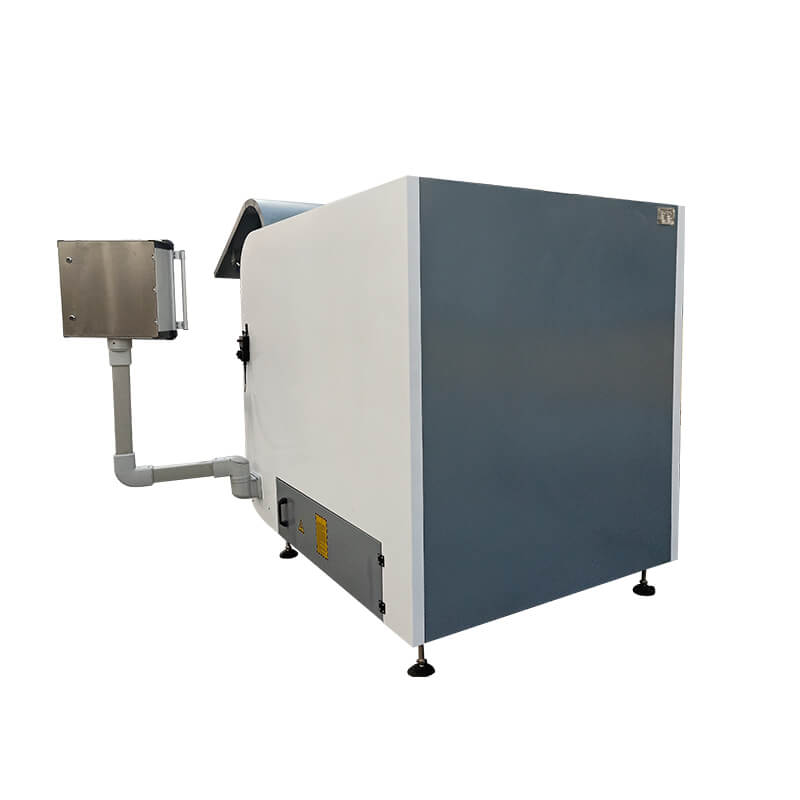

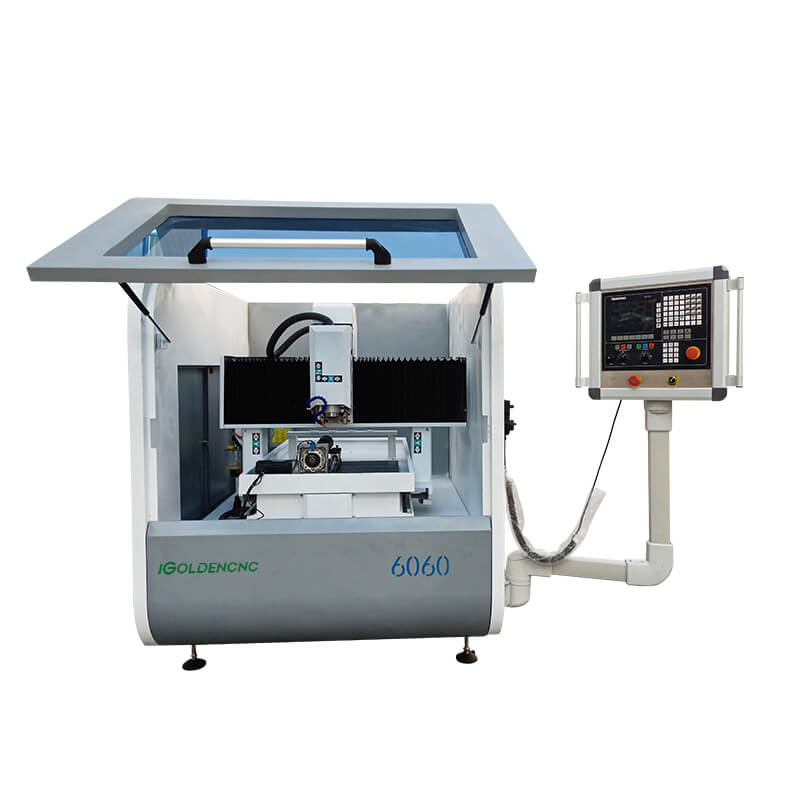

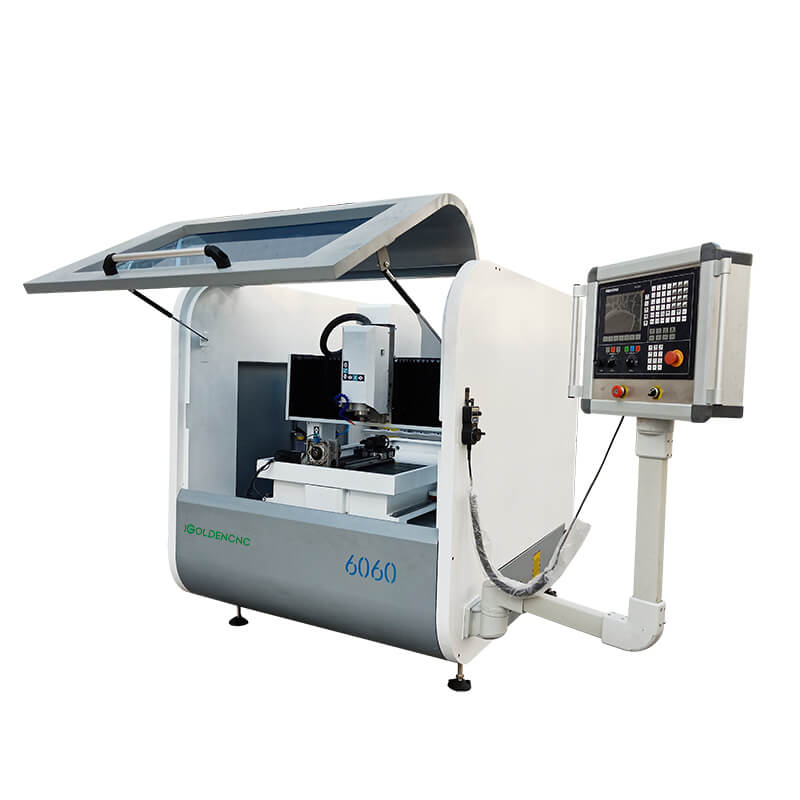

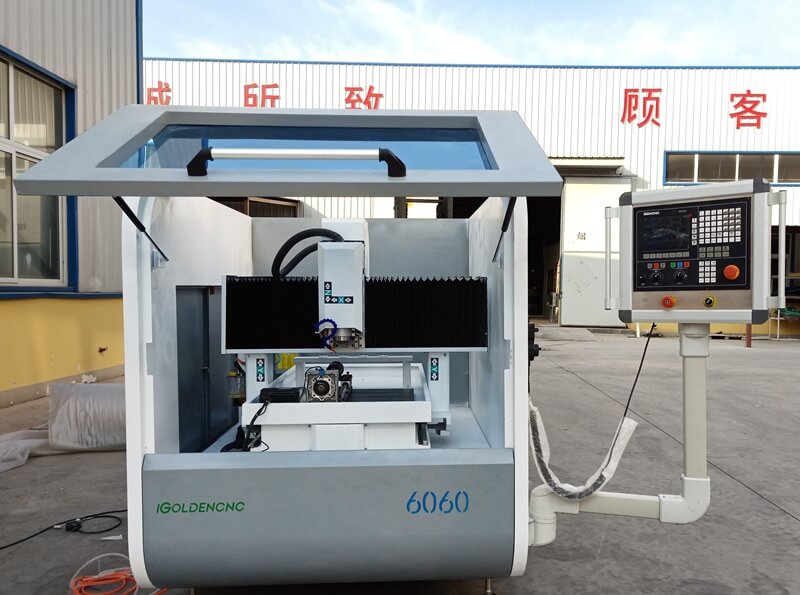

CNC Molding Machine with Automatic Tool Changer
The molding CNC router machine with small volume with ATC function and high precision, perfect for entrepreneurial, small studios or craftsman, the cost-effective model designed by iGOLDENCNC, combined with a competitive set of configurations.
Hobby CNC router machine is a small CNC wood carving machine with automatic tool changer and full-protective device. It has high accuracy, good performance, low price, small footprint, and is mainly used for various small mould engraving.
Advanced Performance
- Use cast iron welding, good rigidity, good stability, not easy to deformation.
- Cover an area of an area small, the use of more convenient, is suitable for the machining of small size.

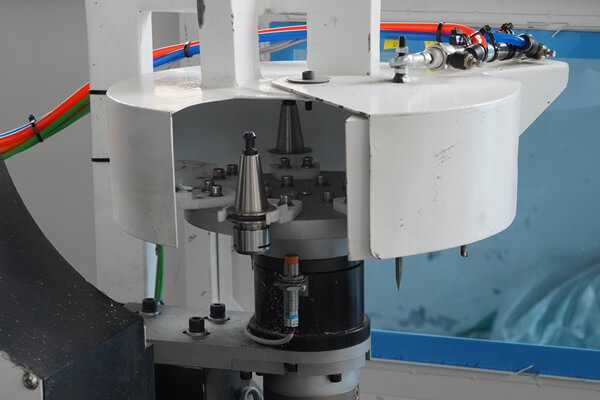

- Adopt the disc knife, tool change fast, a few seconds to realize the automatic tool change.

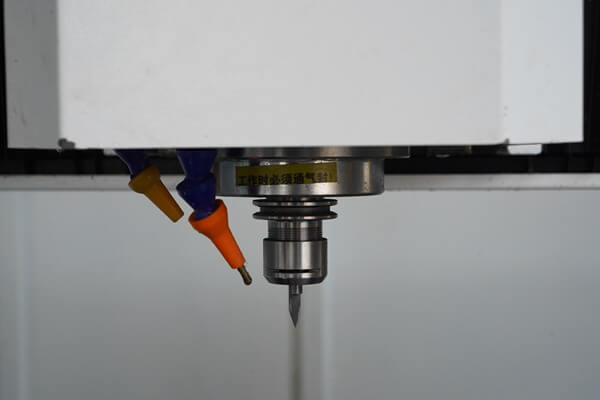

- Adopt cost-effective water cooling spindle, not only good cooling effect, and the machining accuracy is higher.
- Three axis adopt Taiwan TBI ball screw and linear guide, work stability, high precision, long service life.
- Control system simple operation, easy to learn and easy to use, to the greatest extent meet the needs of the user.
Product Parameter
| Technical indicators | parameter |
| Model | iGW-MF |
| Working area（X,Y,Z） | 600*600*250mm |
| Spindle type | 7.5KW water cooled spindle |
| Max.empty line speed | 30000mm/min |
| Max.working speed | 10000mm/min |
| Spindle speed | 24000rpm |
| Positional accuracy | 0.02mm |
| X/Y axis drive | Rack |
| Z axis drive | Ball screw |
| Repeated positioning accuracy | 0.01mm |
| Command language | G Code |
| Working voltage | AC220V/380V, 50Hz |

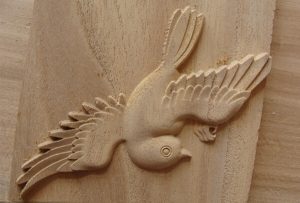

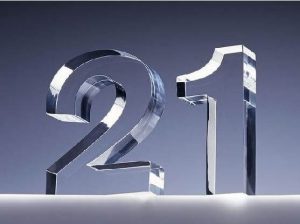

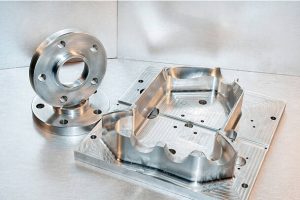

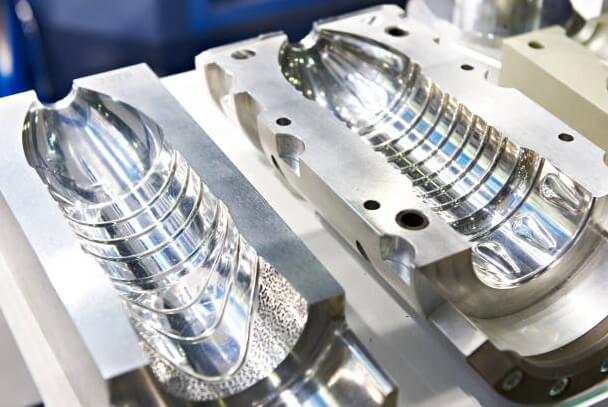

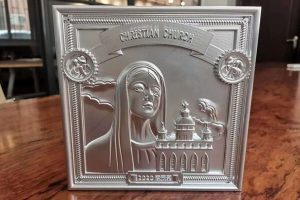

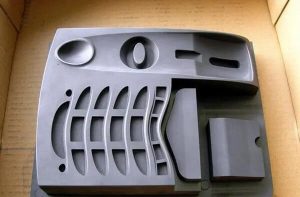

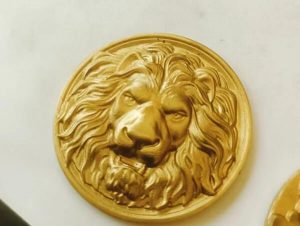

Samples
CNC molding machine is suitable for carving, milling, cutting and drilling most materials, including copper, aluminum, steel, iron, brass, wood, foam, and plastics. It is widely used in injection mould, automotive, ironware mould, shoe mold, drop mold, metal molds, clock parts, copper electrodes, zinc electrodes, metal electrodes, metal crafts, metal arts, jewelry, jade, dental crown, and other molding industries. It is especially designed for batch machining molds, watch, eyeglasses, panel, brand, badge, outside surface’s sleeking, three-dimensional graphics and words, It’s easy for this molding machine to produce 2D or 3D relieves on various materials.
