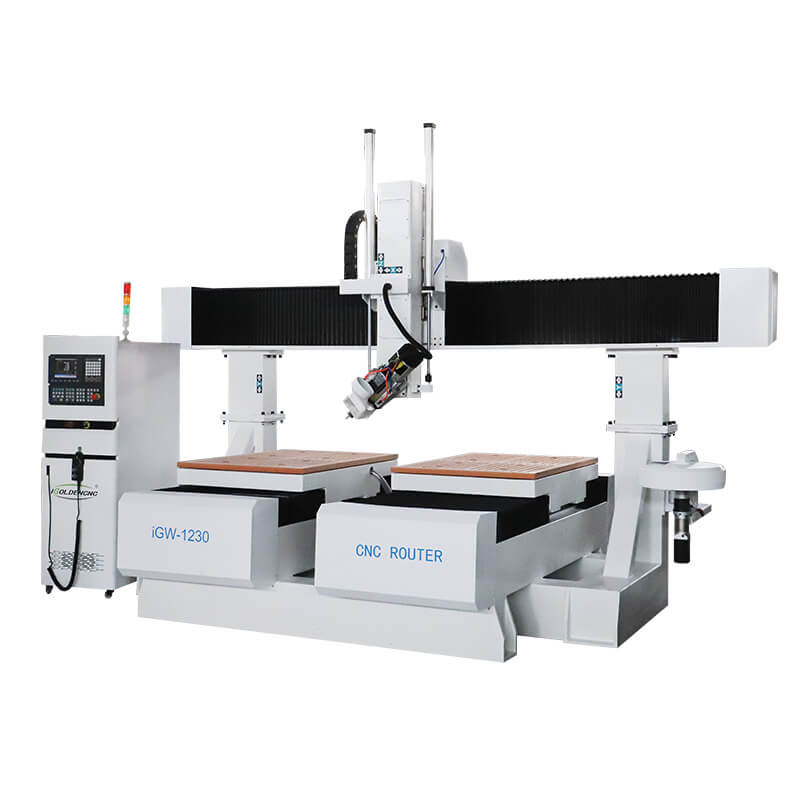

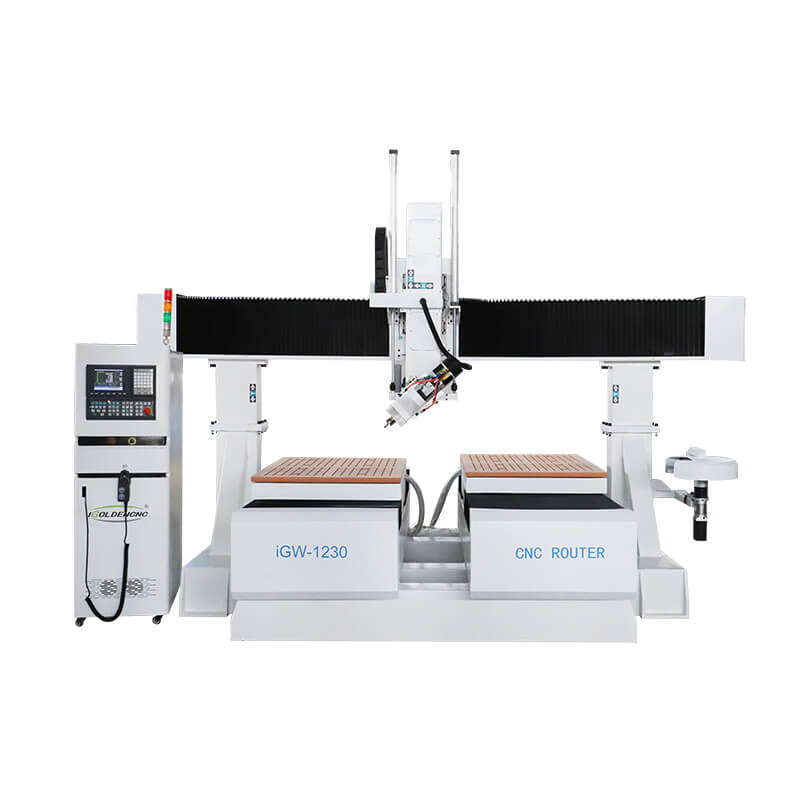

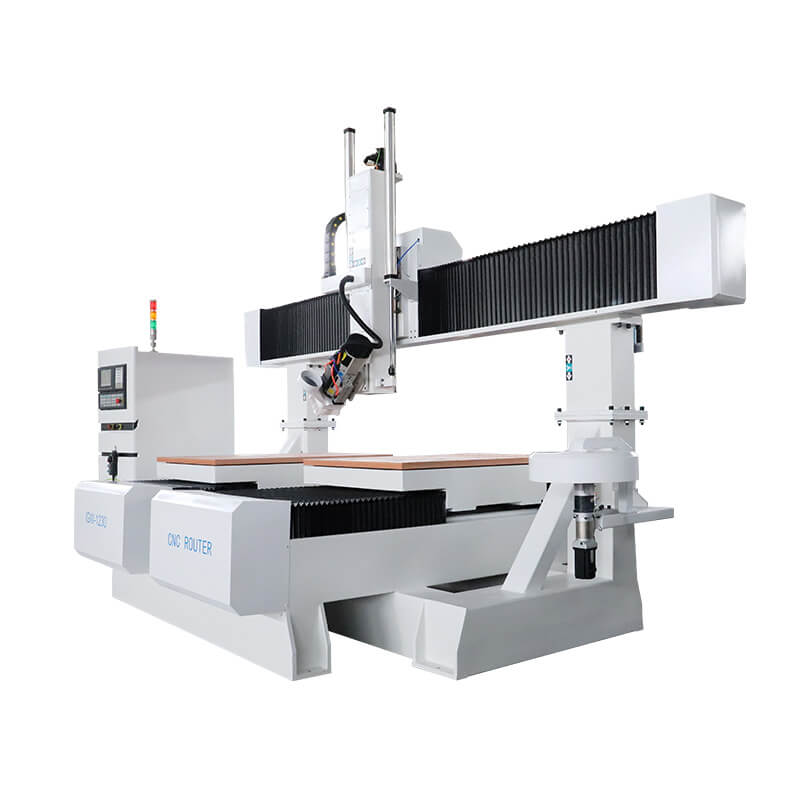

Double Table Processing 4 Axis CNC Router
EPS Mould Making Machine is the heavy-duty CNC Router for all kinds of mold making. Such as wooden wood, Foam mold, aluminum mold, and other non-metal molds. This CNC Router machine is designed with a special machine structure and installed with a high configuration in order to get high speed, high precision, and good performance. The important machining parts of the EPS Cutting Machine tool are subjected to annealing and other heat treatment processes. After the machining is completed, the three-coordinate measurement is performed to ensure the accuracy of the parts.
This machine has two A working station, then when you use this machine to work, when this machine is working in the first station, the worker can make preparations in advance in another station. This can greatly improve the working efficiency of the machine.
Advanced Performance

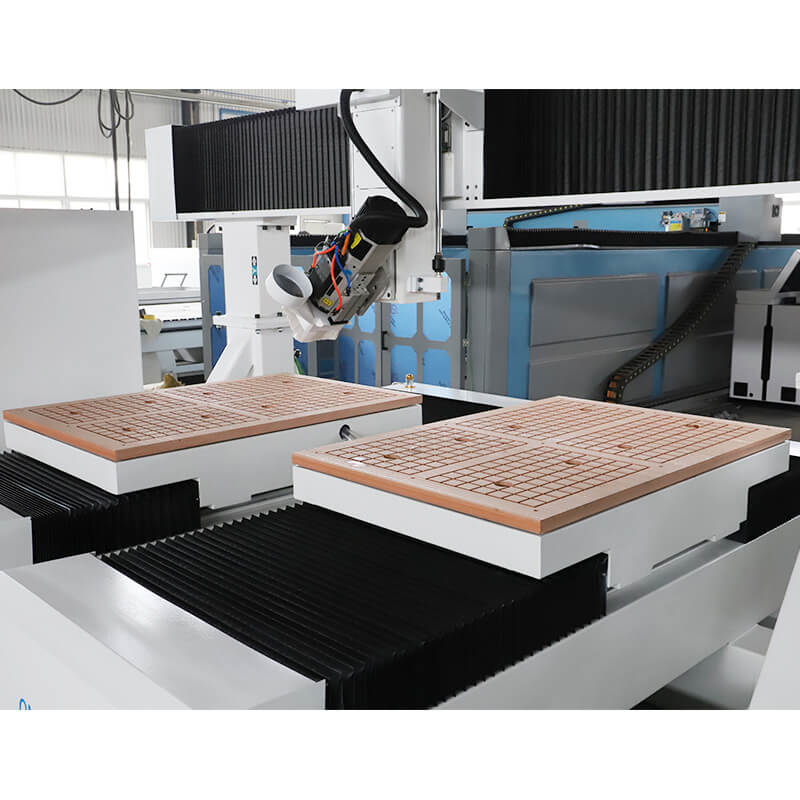

Double Working Stations Of CNC Mold Making Machine
The most notable feature of this 4 axis wood carving machine is that it has two workstations, and the work surface is movable. When you are processing materials on the first work surface, the workers can prepare work in the second work station.
High Processing Accuracy Of 5 Axis Cnc Wood Milling Machine
The machining accuracy of this 4 axis CNC mold making machine is very high. The transmission mode of this machine is through the ball screw transmission, which is more precise than the rack transmission machine.
Automatic Tool Change Function And High-Power Spindle
The CNC mold router machine has an 8-position tool rack at the back of the machine. You can install the tools you want to use on the tool rack in advance. If you think the quantity is too small, we also provide you with 8-16 position tool rack. And this machine is equipped with a 9kw high-frequency spindle as standard.
Product Parameter
| Model | iGW-1230 |
| Working area | 1200x800x500mm |
| Transmission | X axis: Taiwan grinding rack,YZ axis: Taiwan TBI screw |
| Reducer | JAPAN SHIMPO |
| Servo motor | Taiwan Syntec AC servo motor |
| Control system | Taiwan Syntec control system |
| Spindle | 9KW HQD spindle and rotating 180° |
| Inverter | Taiwan Delta 11kw |
| Guide rails | Taiwan Hinwin 30mm |
| Table structure | Vacuum table with Vacuum pump |
| Tools magazine | Disc tool changer magazine |
| Tool senior | YES |
| Lubrication | Automatic |
| Dust collector | 5.5kw |
Samples
CNC Router 4 Axis Machining Centre
Mold industry: casting mold, automobile, ship, yacht, aviation industry, rail transportation etc.Musical instruments: large 3D curved surface and shape processing.Applicable materials: wood, EPS, other non-metal carbon mixed compound, etc.
