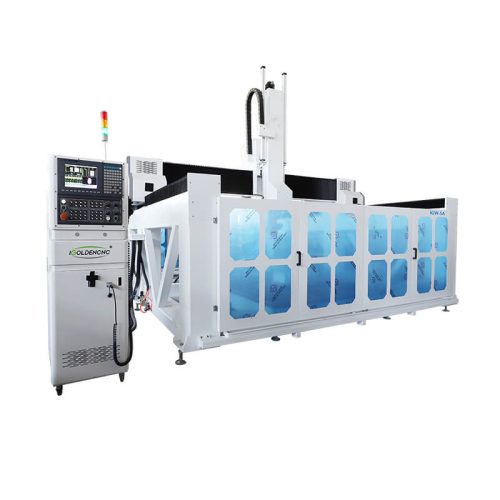

5 Axis Wood Carving Machine CNC Mold Making Machines

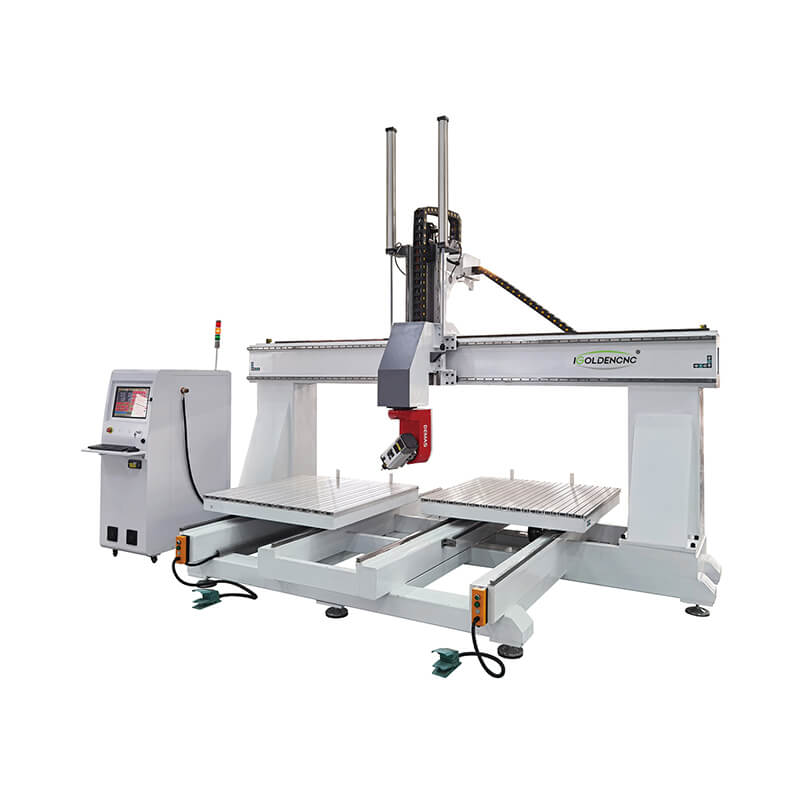

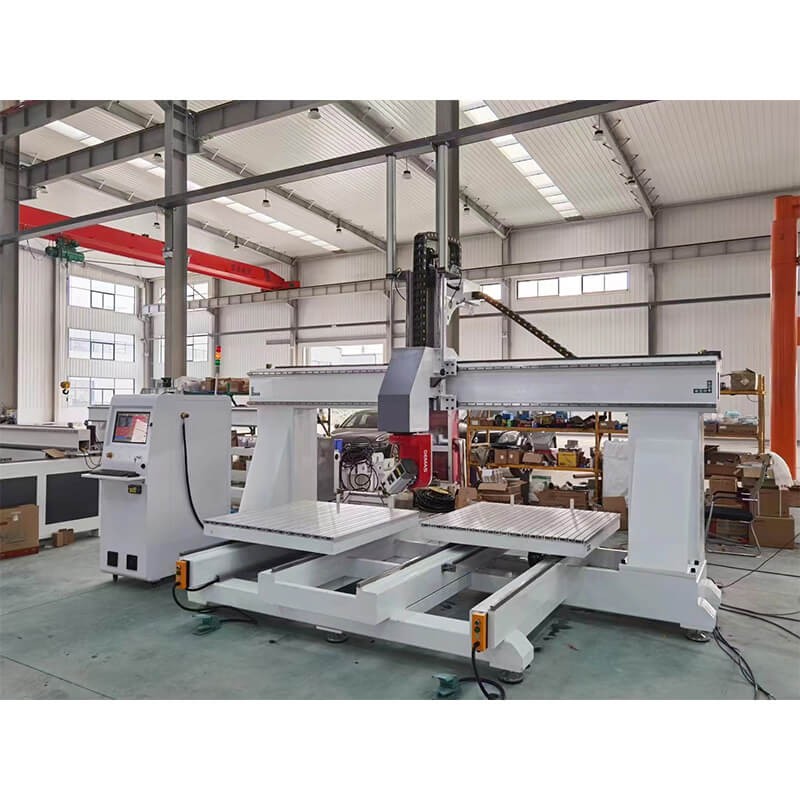

The most notable feature of this 5 axis wood carving machine is that it has two workstations, and the work surface is movable. When you are processing materials on the first work surface, the workers can prepare work in the second work station. For example, fixing the material to be processed, etc. This can significantly improve the efficiency of the 5axis CNC router machine.

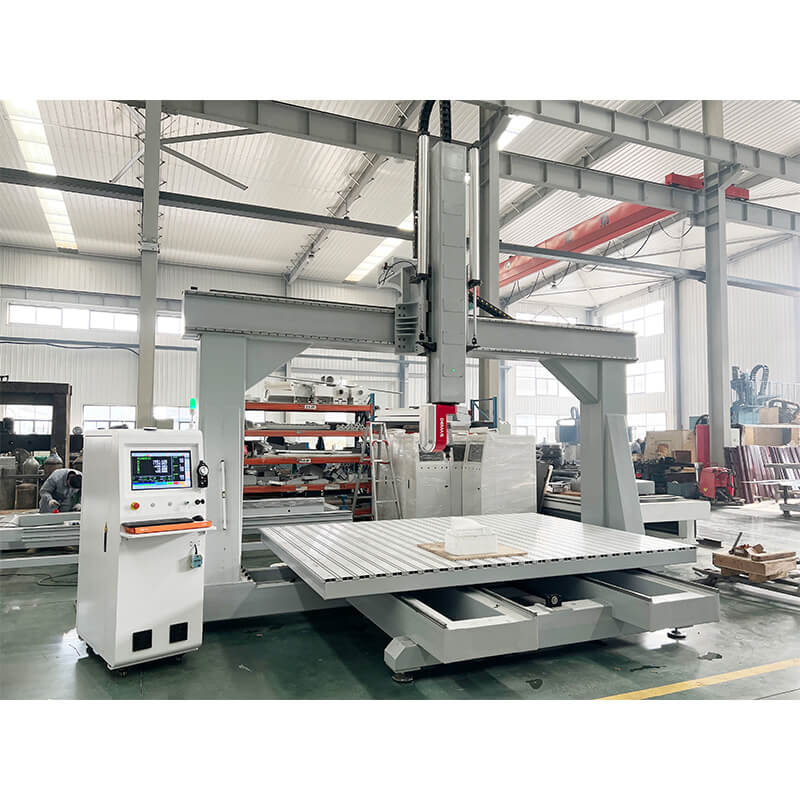

The 5 axis CNC mold-making machine is with table moving machine table, and the Y-axis adopts with ballscrew drive, which is with higher precision than rack drive.
Advanced Performance
1. All components are from international famous brands, which greatly extend the life service of the machine.
2. Two movable working tables can realize simultaneous processing and loading & unloading, which greatly saves loading and unloading time and improves work efficiency.
3. With a carousel tool magazine, this CNC router can change tools automatically, extending the processes and increasing work efficiency.
4.9kw high frequency automatic tool change spindle.The machining accuracy of this spindle is very high, and the spindle is cooled by air cooling.
5.This 5 axis wood carving machine has a long service life, because the overall structure of the machine is welded by seamlessly welded thick-walled square tubes, the machine has high stability, the body is sturdy and durable, and there will be no problems such as deformation.
Product Parameter
| Model | iGW-5WM |

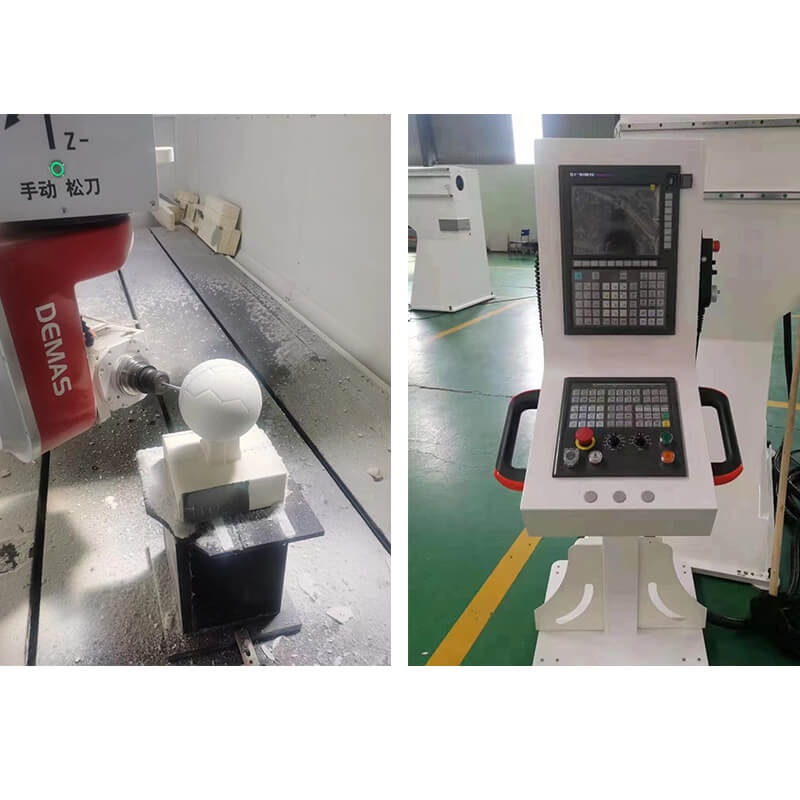

| System | Taiwan SYNTEC control system |
| Spindle | DEMAS five-axis head and 9kw HQD water-cooled spindle |
| Inverter | Fuling 11KW |
| Table | Aluminum alloy T-slot table top |
| Journey | Effective stroke 1000x1200mm (two tables) |
| Tool change | 8 tool changer holders |
| A-axis swing angle | -120°⁓ 120° |
| C-axis rotation angle | -400°⁓ 400° |
| X, Y, Z axis feed acceleration | 3m/s2 |
| Workbench load | 80kg/㎡ |
| Spindle maximum speed | 24000r/min |
| Max. output power | 19kw |
| Machine weight | 4T |
| Machine packing size | 4.2m（L）* 2.8m（H）* 3.7m(W) |
We offer customized services according to your requests such as the working area and specifications.

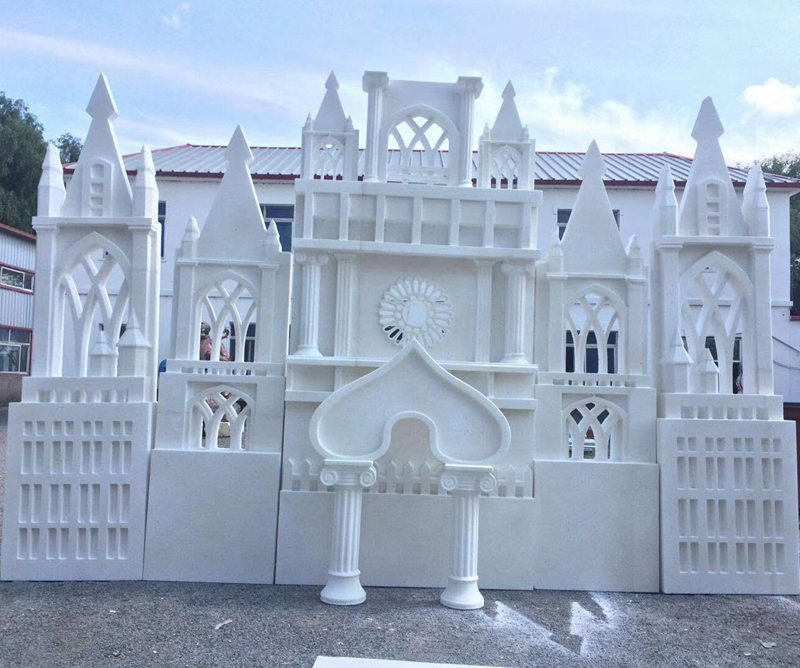

Samples
Application of 5 Axis CNC Router Machine
The 5 axis woodworking cnc router with ATC function, it’s easy to accomplish full set processing of complex parts from milling, slotting, drilling, sawing, mortise, mortise, etc, the advanced model designed by iGOLDENCNC, combined with a competitive set of configurations.

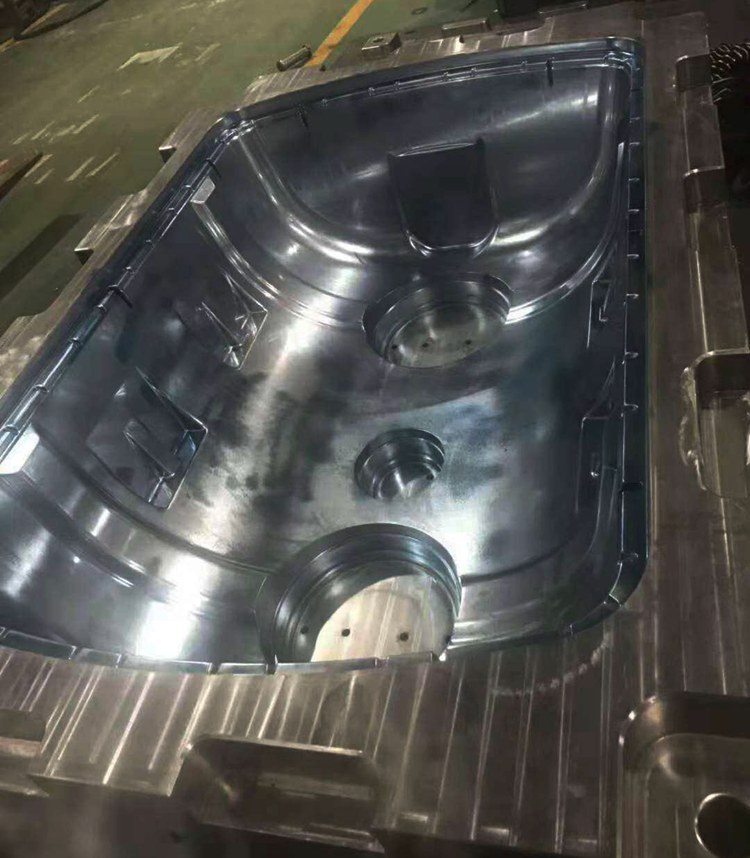

Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;

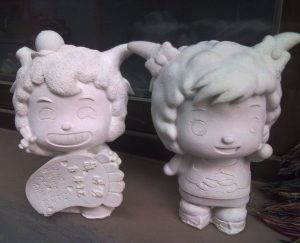

Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;

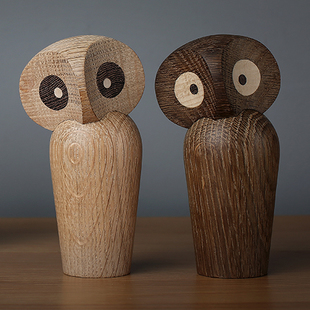

Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.
