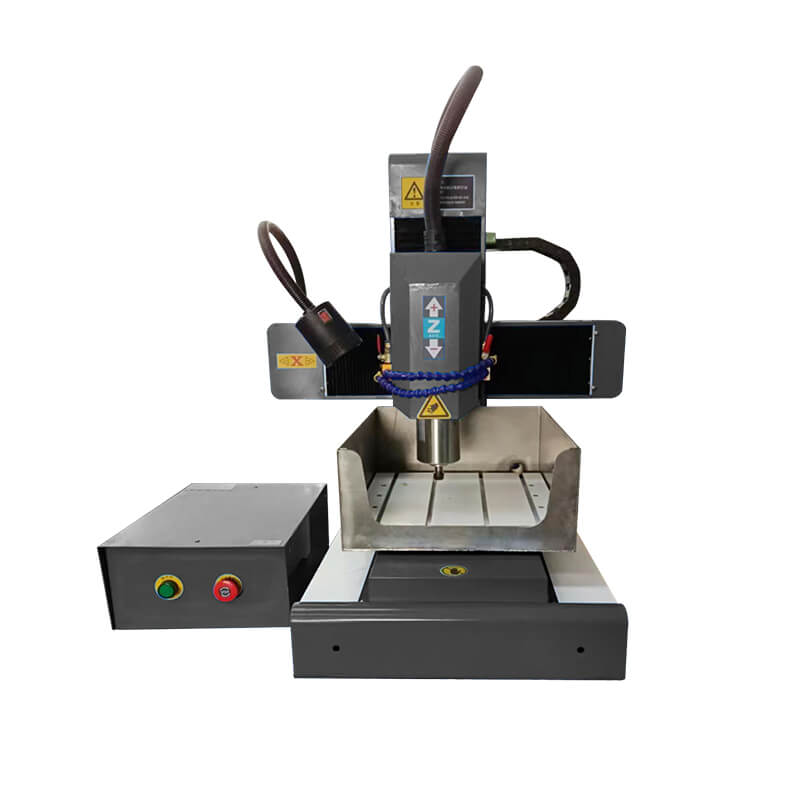

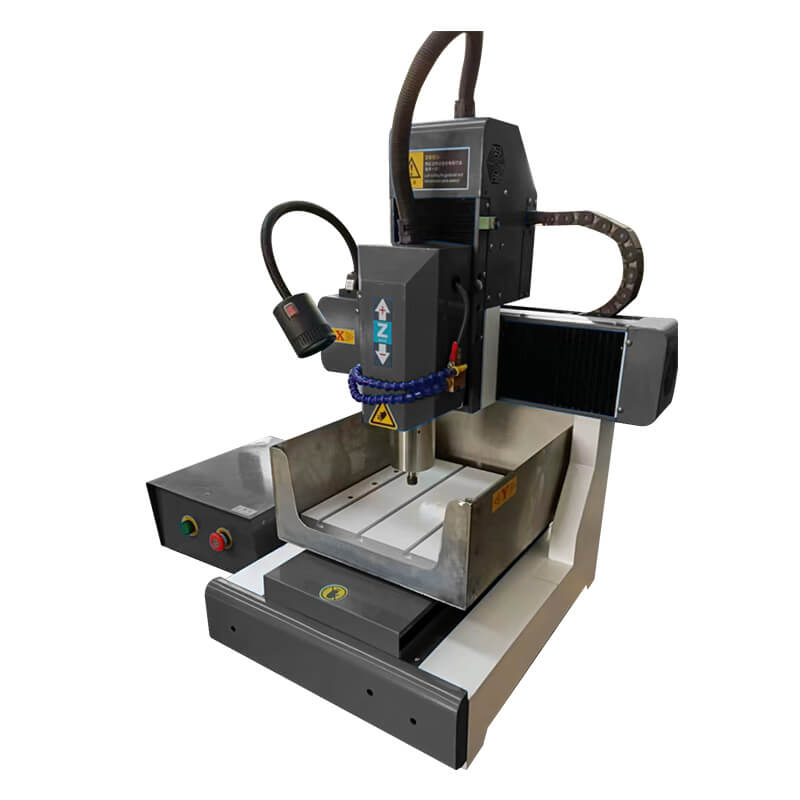

Mini 4 Axis CNC Mill Machine

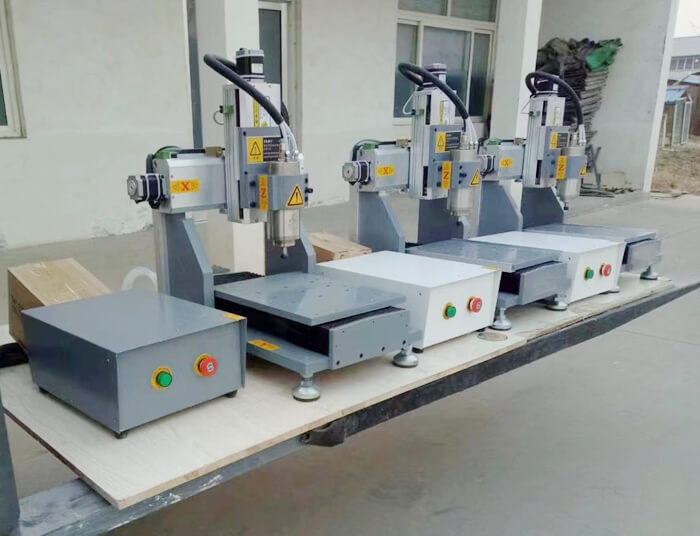

Small metal mold machine is a high efficiency, high precision CNC engraving machine, can be customized size 4040/6060/6090/1212, equipment covers a small area, high precision, fast speed, low cost, no pollution;

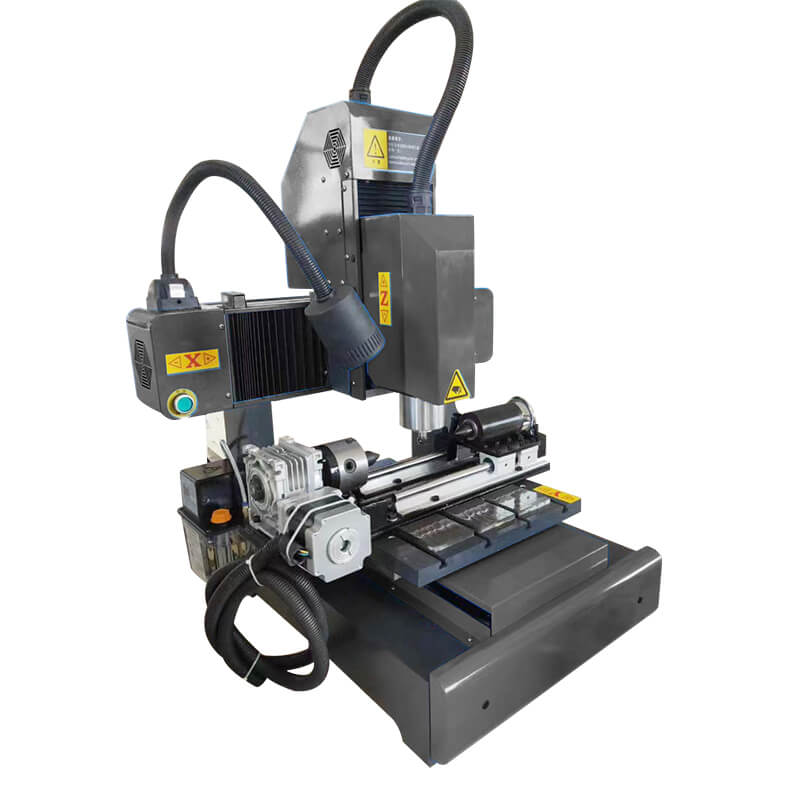

4-Axis Rotary Table Of Mini Milling Machine Desktop 4 axis CNC milling machine rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment. The addition of mini milling machine 4-axis rotary table assembly adds greater functionality to the CNC homemade 4 axis machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
Advanced Performance
1.Use cast iron welding, good rigidity, good stability, not easy to deformation.
2.Cover an area of an area small, the use of more convenient, is suitable for the machining of small size.
3.Adopt cost-effective water cooling spindle, not only good cooling effect, and the machining accuracy is higher.
4.Three axis adopt Taiwan TBI ball screw and linear guide, work stability, high precision, long service life.
5.Control system simple operation, easy to learn and easy to use, to the greatest extent meet the needs of the user.
Product Parameter
| Technical indicators | parameter |
| Model | iGW-M(D) |
| Working area（X,Y,Z） | 400*400*120mm |
| Spindle type | 2.2kw water cooled spindle |
| Max.empty line speed | 30000mm/min |
| Max.working speed | 10000mm/min |
| Spindle speed | 24000rpm |
| Positional accuracy | 0.02mm |
| X/Y axis drive | Rack |
| Z axis drive | Ball screw |
| Repeated positioning accuracy | 0.01mm |
| Command language | G Code |
| Working voltage | AC220V/380V, 50Hz |
Samples
Mainly used for a variety of small mold engraving, widely used in glasses, watches, panels and other large mold three and outer surface processing, such as badges, brands, graphics, text and so on. It is often used in woodworking, advertising, decoration, automobile, injection mold, hardware mold, engraving mold and other industries
